High precision Low Noise Spherical Roller Bearing 23030 For Wholesale
The product description,
1. new model: 23030
2. Domestic old model: 3003130
3. Inside diameter (mm) : 150
4. Outside diameter (mm) : 225
5. Width (mm) : 56
6. Grease lubrication speed (r/min) : 900
7. Cor (kN) : 768
8. Cr (kN) : 328
9. Oil lubrication speed (r/min) : 1200
10. Weight (KG) : 8.14
Spherical roller bearings features,
1. Spherical roller bearings have two rows of rollers, which mainly bear radial loads and can also withstand axial loads in either direction.
2. With high radial load capacity, it is especially suitable for work under heavy load or vibration load, but can not bear pure axial load.
3. There are two rows of symmetrical spherical rollers. The outer ring has a common spherical raceway.
4. The inner ring has two raceways inclined at an angle to the bearing axis. It has good self-aligning performance.
5. When the shaft is bent or installed out of center The bearing can still be used normally.
6. The self-alignment varies with the bearing size series. Generally, the allowable self-aligning angle is 1~2.5 degrees.
7. The load capacity of this type of bearing is large. In addition to the radial load, the bearing can also withstand.
8. Axial loads acting in both directions have better impact resistance.
9. Generally speaking, the working speed allowed for spherical roller bearings is lower.
20303 Aligning roller bearing,
| Brand Name | FAG or OEM | | Structure | Spherical | | Seals Type | Open | | Material | Ring Material Chrome Steel ,Carbon steel,Stainless steel | | Cage material | Nylon ,steel , brass | | Clearance | C0,C2,C3,C4,C5 | | Vibration | Zv1,Zv2 and Zv3 | | Precision Rating | P0,P6,P5,P4,P2 | | Sizes(mm) | 150*225*56mm | | Weight(kg) | 8.91kg | | Greese | As you requirement, such as SRL ,PS2, Alvania R12 and so on . | |
| Brand | FAG Bearings |
| Name | Spherical Roller Bearing |
| Model | CC--CC Steel Cage |
| CA--Bronze Cage |
| MB--Split Bronze Cage |
| Material | Chrome Steel GCr15 | Certificate | ISO9001:2001 |
| Bore Size: | 50mm-1000mm | Outside diameter | 2000mm |
| Precision | P0,P1,P2,P3,P4,P5,P6 |
| Cage Type | Carbon steel, Brass/bronze, etc. |
| Features | Spherical rollers are put between the spherical raceway on the outer ring and the two grooves on the inner ring for there bearings. Since the center of the arc raceway on the outer ring is the same as the center of the whole bearing arrangement, there bearings are self-aligned and automatically adjust the bending of the shaft and housing and the eccentricity. The bearings can carry radial load and axial load in double directions. The especial radial load carrying capability makes there bearings suitable for heavy load and shock load carrying. |
| Application | Suitable for mining machinery, reducers, steel mills, metallurgy, oil fields, rolling mills, fans, etc. |
| Package | pallet, wooden case, industrial package or as customers' requirement |
| Price | FOB, CFR, CIF | Delivery Time | 4-12 days |
Product Description,
Packaging Details,
Action now, if you need, welcome contact us for price list.
24hours in service contact us!!
Product Tags:
|
|

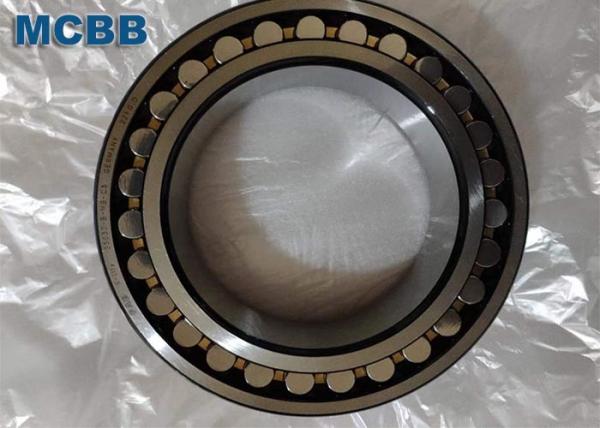

23030 Double Row Spherical Roller Bearing Images
|
